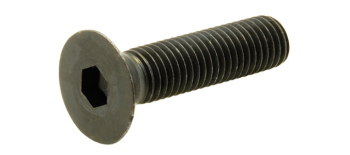

Socket Countersunk

Also known as flat head cap screws, they are designed for use in applications where the head must not protrude above the mating parts. They are set in countersunk holes and the top of the head is flush with the surface of the assembled parts.

Available in Grade 10.9 alloy steel and A2/304 Stainless Steel. Grade 8.8 and A4/316 Stainless Steel available to order subject to minimum order quantities.

Metric Countersunk

More Details

UNC/UNF Countersunk

More Details

BSW/BSF/BA Countersunk

More Details
